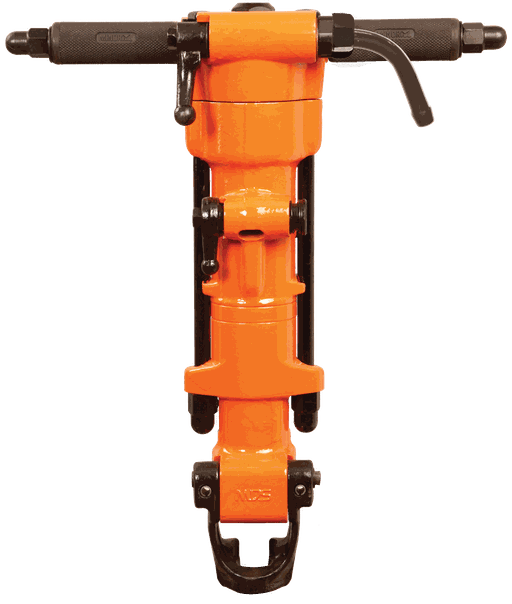

MH505L Sinker Drill
Powerful lightweight sinking hammer for mining, quarry, and construction applications.
Powerful lightweight sinking hammer with the ability to drill up to 20 feet deep. This unit comes with standard air flushing and a 7/8" x 4-1/4" chuck size.
Click HERE for spare parts package.
Specifications (Metric/Imperial)
Weight: 24 kg 53 lb
Length: 565 mm 22 in
Stroke Length: 59 mm 2⅜ in
Air Consumption: 58 l/s 123 cfm
Penetration Rate: 425 mm/min 17 in/min
Hose Connections Ø 19 mm Ø 3/4 in
Piston Diameter: 65 mm 2½ in
Max Drilling Diameter: 40 mm 1⅝ in
Max Drilling Depth: 6000 mm 20 ft
Impact Rate: 2040 BPM
Revolutions: 215 RPM
